As-Built Drawings Meaning: A Contractor’s Guide to Final Documentation in UAE Construction

Q: What are as-built drawings and why are they important?

As-built drawings are final construction documents that show exactly what was built, including all approved changes. They’re essential for handover, regulatory compliance, future maintenance, and resolving disputes — serving as the legal record of the completed project.

Q: What’s the difference between original drawings and as-built drawings?

Original drawings reflect the initial design intent. As-built drawings reflect the actual constructed reality — updated with all field modifications, rerouted MEP, structural adjustments, and approved variations made during construction.

Q: What are the as-built drawings requirements in UAE?

In the UAE, certified as-built drawings are typically required by Dubai Municipality, Civil Defense, and DEWA for project completion certificates. As-built drawings must accurately reflect the completed construction, including all approved modifications to architectural, structural, and MEP systems. They are typically submitted in digital formats (such as DWG and PDF) and are required for building completion certificates. They must be stamped by a licensed engineer or contractor.

Q: How to make accurate as-built drawings on a live construction site?

To create accurate as-built drawings on a live construction site, update drawings immediately after every approved field change instead of waiting until project closeout. Record changes using redline markups, dated site photos, field measurements, and variation logs, then verify them through regular quality checks. Integrating these updates with your ERP’s Project Progress Reporting improves traceability, auditability, and ensures a reliable final record.

Q: Who is responsible for preparing as-built drawings — the contractor or consultant?

In UAE construction projects, the contractor is primarily responsible for preparing and compiling accurate as-built drawings that reflect the completed work and all approved site changes. The consultant (engineer) is responsible for reviewing, verifying, and approving these drawings to ensure they comply with the contract, approved design, and authority requirements before final handover.

14 Jul 2026 • 19 min read

Arina Sherbakova

Author & editor

Construction projects rarely finish exactly as planned: design revisions and client-requested changes make as-built drawings an essential concept for every contractor in the UAE. These drawings provide an accurate record of the completed project, ensuring owners, consultants, and facility managers have reliable documentation long after construction is finished.

In this guide, you'll learn about the as-built drawings meaning, their different types, who is responsible for preparing them, how to make as-built drawings (using traditional methods or laser scanning), and the key Dubai Municipality requirements (DBC) for compliant submission of as-built drawings in the UAE.

As-Built Drawings Definition: What are As-Built Drawings?

The term "as-built drawing" literally means "as it was built." It reflects the building's real final condition instead of the original design intent.

The as-built drawings definition refers to a set of revised construction drawings that accurately document how a project was actually completed, rather than how it was originally planned. These drawings capture every approved site modification, including changes to dimensions, materials, utility routes, structural elements, and MEP systems.

Accurate as-built drawings ensure these modifications are fully documented, helping contractors avoid disputes, simplify inspections, and provide reliable records for future upgrades or maintenance.

Example illustrating the meaning of as-built drawings:

A contractor building a commercial tower in Dubai discovers that an underground utility corridor conflicts with the planned chilled water pipeline. After receiving approval from the project consultant, the pipeline is rerouted several metres to avoid the obstruction.

Contractor updates the as-built drawings to show the new pipeline route, revised dimensions, and modified connection points. These drawings accurately document what was actually installed, helping authorities, facility managers, and future contractors understand the completed work.

As-Built Drawings vs Original Design Drawings: What's the Difference?

The table below highlights the key differences between original design drawings and as-built drawings throughout a construction project's lifecycle. While design drawings communicate the intended concept before construction, as-built drawings provide an accurate record of the completed work, documenting all approved modifications and field changes.

Aspect	Original design drawings	As-built drawings
Purpose	Show the architect's and engineer's intended design before construction begins.	Document the project exactly as it was constructed, including all approved site changes and modifications.
Project stage	Prepared during the planning and design phase.	Produced throughout construction and finalized after project completion.
Content	Planned layouts, dimensions, specifications, materials, and system designs.	Final dimensions, installed materials, rerouted services, revised layouts, and all field changes from the original design.
Prepared by	Architects and engineering consultants during the design stage.	Usually maintained by contractors during construction and later updated into final CAD drawings. Then reviewed and approved by the Engineer/Consultant.

While as-built drawings are often finalized at project closeout, the process of capturing changes should begin from day one. Construction project management software helps teams maintain accurate as-built documentation by centralizing drawings, tracking revisions, recording field changes in real time, and creating a complete audit trail of approvals and decisions.

Keep your project on track

Manage every phase efficiently with ERP tools

Request a demo

Why As-Built Drawings Are Important for UAE Contractors?

As-built drawings do far more than document construction changes. They play a critical role in helping UAE contractors meet regulatory requirements, achieve faster project handovers, and maintain accurate building records.

As-built drawings helps contractors with:

Reducing legal, safety, and insurance risks. Accurate as-built drawings provide documented evidence of the completed construction, helping contractors resolve disputes, demonstrate regulatory compliance, support insurance claims, and verify that safety-critical systems were installed as approved.
Meeting Dubai Civil Defense (DCD) approval requirements. Since March 2026, DCD requires as-built fire safety drawings to be uploaded and approved through the DCD e-portal before an inspection can be scheduled. This review typically adds 3–5 working days to the inspection process.
Supporting DEWA utility approvals and service connections. DEWA requires approved as-built drawings submitted through the DEWA infrastructure projects services portal to verify that the installed utility infrastructure matches the approved design before issuing a Completion Certificate.
Obtaining the Dubai Municipality Building Completion Certificate (BCC). To obtain a BCC, contractors and consultants must submit the completion application, including as-built drawings, through the Dubai Building Permit System (BPS) after construction is finished. The application is followed by a final inspection.
Meeting DDA and Free Zone completion requirements. Contractors working in Dubai Development Authority (DDA) jurisdictions and Dubai free zones, like Nakheel, must maintain accurate as-built drawings to support completion inspections and project handover.
Improving future renovation and expansion work. Building owners and consultants depend on as-built drawings when planning renovations, tenant fit-outs, extensions, or equipment upgrades, avoiding unnecessary site investigations.
Supporting building maintenance and facility management. Facility managers rely on as-built drawings to locate concealed services, valves, electrical circuits, drainage networks, HVAC systems, and underground utilities, making maintenance faster and reducing unnecessary demolition during repairs.

Who Makes As-Built Drawings in UAE Construction?

In the UAE, as-built drawings are typically produced through a collaborative effort involving licensed contractors, specialized land surveying firms, and architectural and MEP engineering consultants.

Contractors record on-site changes during construction, surveyors capture the completed building's exact dimensions and locations using total stations or laser scanning, and architectural or engineering consultants incorporate this verified field data into the final as-built documentation.

For authority submissions, the final as-built package must comply with the requirements of the relevant approval authority. In Dubai, authorities such as Dubai Municipality (DM) and the Dubai Development Authority (DDA) require submissions from licensed engineering consultants and, where applicable, registered surveyors.

In Abu Dhabi, the Department of Municipalities and Transport (DMT) has established detailed As-Built Geospatial Data Submission Standards governing the CAD data submitted by engineering consultants, contractors, developers, and survey professionals for municipal records and GIS integration.

Pro tip: Don't wait until construction is complete to start preparing as-built drawings. Maintain redline markups and conduct periodic as-built surveys throughout the project, especially before concealed works such as foundations, underground utilities, and MEP installations are covered.

Learn more about MEP in Construction: Mechanical, Electrical, and Plumbing Systems

Keep projects running like clockwork

Request a demo

What Information Should As-Built Drawings Include?

As-built drawings should provide a complete and accurate record of the finished project, documenting every change made during construction. To ensure they remain useful for future maintenance, renovations, inspections, and facility management, they should include:

Final dimensions and layouts. Record the exact measurements, locations, and configurations of all building elements as constructed.
Design and field changes. Clearly identify all deviations from the original plans, including revised layouts, relocated components, and approved design modifications.
MEP system updates. Document the final locations of electrical, plumbing, HVAC, fire protection, and communication systems, including concealed services where applicable.
Materials and equipment details. Include installed materials, product specifications, equipment model numbers, capacities, and any substitutions made during construction.
Structural modifications. Show changes to foundations, framing, beams, columns, slabs, and other structural components.
Shop drawing revisions and extra work. Incorporate approved shop drawing changes, additional work, and modifications outside the original project scope.
Annotations and revision history. Add clear notes, dates, revision markers, and descriptions explaining when and why each change was made.
Supporting documentation. Reference inspection records, photographs, manufacturer data, testing reports, and other documents that help verify the completed installation.

Modern ERP solutions in Dubai help keep as-built drawings accurate by capturing field data throughout construction. Site teams can upload photos, progress updates, and field notes directly from mobile devices, creating a documented record of completed work that supports drawing revisions.

Requirements for As-Built Drawings Submissions Under the Dubai Building Code in 2026

Understanding the as-built drawings requirements is an important step in obtaining a Building Completion Certificate (BCC) in Dubai. While a BCC can be issued by authorities such as Dubai Municipality (DM), Dubai Development Authority (DDA), or Trakhees (depending on the location of your project), this section focuses on the Dubai Municipality process.

After construction is completed, the consultant must verify that the finished building accurately reflects the approved design and complies with the applicable Dubai Building Code (DBC) requirements before submitting the final documentation through Dubai Municipality's Building Permit System (BPS).

The overall process typically follows these steps:

The consultant conducts an as-built survey of the completed works. This includes measuring partition locations, room dimensions, ceiling heights, door and window positions, structural elements, and all visible MEP installations.
The consultant prepares the final DBC 2026 drawing package and submits it through Dubai Municipality's Building Permit System (BPS).
Once the submission is accepted, the contractor can book the final completion inspection using the Build in Dubai (formerly MyBuilding) mobile application.
Following a successful inspection, the Building Completion Certificate (BCC) is typically issued within 3 to 7 working days, depending on the project.

Note: Minor non-structural deviations (within ±300 mm) are generally accepted during inspection. However, structural changes or larger deviations require an approved drawing amendment before completion certification can proceed.

Required Contents of the As-Built Drawing Package

The Dubai Municipality (DM) as-built drawing package should accurately represent the completed building and demonstrate compliance with the approved permit drawings. The core submission requirements include:

Architectural & structural drawings. Fully dimensioned as-built floor plans, sections, and elevations showing all completed works and identifying any changes from the originally approved building permit drawings. Significant design changes must be supported by an approved drawing amendment before the BCC application is submitted.
MEP (Mechanical, Electrical & Plumbing) drawings. Fully coordinated as-built service layouts showing the actual installed routing of ductwork, piping, cable trays, electrical systems, fixtures, equipment locations, and other visible building services to reflect site conditions.
Revised structural calculations. Where structural modifications have been made, updated structural calculations and load analyses must accompany the revised drawings as part of the amendment documentation.
Consultant & contractor certification. The final as-built drawing package must be signed and stamped by both the registered engineering consultant and the licensed contractor responsible for the project before submission.

As-Built Drawings Requirements Under the Dubai Building Code (DBC)

Preparing an as-built drawing package for Dubai Municipality requires compliance with the Dubai Building Code (DBC) and the technical standards of the Building Permit System (BPS).

The requirements for as-built drawings cover CAD format, file specifications, title block information, layer naming conventions, sheet sizes, supporting engineering documentation, and consultant eligibility. If you ensure that these technical requirements are met before submission, you can avoid validation errors, drawing rejections, and delays in the BCC approval process.

The following as-built drawings requirements summarize the key technical standards for preparing and submitting an as-built drawing package through BPS:

Standard.Dubai Building Code (DBC 2026), which is mandatory for all Dubai Municipality drawing submissions.
Submission platform.Building Permit System (BPS).
Compatible AutoCAD release. AutoCAD 2018 or any newer version.
Accepted files. Native DWG files are required for architectural and structural drawings; PDF files are submitted separately where applicable.
Upload limit. Up to 15 MB per drawing file. Larger projects should be divided into multiple files.
CAD layer naming standard. DBC 2026 layer naming format using discipline, category, and subcategory.
Fields of the title block. Must include Project name, plot number, Affection Plan number, consultant registration number, drawing number, revision, date, scale bar, and north point.
Recommended plan scales. 1:100 for floor layouts, 1:50 for details, and 1:500 for site plans.
Standard sheet format. ISO A1 for primary drawings, with A3 permitted only for detail sheets.
Engineering calculations. Certified structural calculations must accompany structural applications as a separate document.
Environmental compliance. Al Sa'fat 2.0 Silver documentation submitted independently from the drawing package.
Eligible applicant. Only consultants registered with Dubai Municipality can submit drawings, with project scope determined by their registration classification.

Pro tip: Before submitting the final drawing package, perform a drawing-by-drawing check against the latest approved permit drawings to confirm that all completed works are reflected accurately and that any significant deviations have already been approved through a drawing amendment.

Title Block Requirements for Dubai Building Code (DBC) in 2026

Every drawing sheet submitted through Dubai Municipality's Building Permit System (BPS) must contain a complete title block, typically positioned in the bottom-right corner of the sheet.

The title block provides the project identification and consultant information required for submission review and document traceability. Incomplete, inconsistent, or missing title block information may result in the drawing package being returned for correction before technical review.

The title block should include the following information:

As-built identification. Clearly mark each drawing "AS-BUILT" or "AS-CONSTRUCTED" in the title block.
Project name. Must exactly match the project name registered in the Building Permit System (BPS).
Plot number. As shown on the official Affection Plan.
Affection plan number. The official reference number issued for the plot.
Consultant registration number. Dubai Municipality registration number of the responsible engineering consultant.
Drawing number. Unique drawing identifier (e.g., A-001, A-002, S-101, M-201).
Revision number. The revision must continue from the latest approved drawing set. For example, if the approved drawings were Rev 2, the as-built drawings should normally be submitted as Rev 3, with the revision description indicating "As-Built."
Date. Use the date of the as-built survey or drawing preparation, not the original design drawing date.
Scale. Show both the written drawing scale (e.g., 1:100) and a graphic scale bar.
North point. Required on all plan drawings; generally not required on sections or elevations.
Consultant details. Consultant's company name, with space for the official company stamp and authorized engineer's signature, which are applied as part of the certified submission process.

Pro tip: Create a title block template and reuse it across every drawing in the submission set. Before uploading, verify that the project name, plot number, Affection Plan number, drawing numbers, revision history, and consultant registration details are identical to the information recorded in the BPS.

Make the most out of your project data

Analyze results with FirstBit’s real-time dashboards

Request a demo

How to Make As-Built Drawings: Traditional and Laser Scanning Methods

Understanding how to make as-built drawings starts with choosing the right documentation method. Traditional workflows rely on continuous field updates, redline markups, and manual verification throughout construction, while modern workflows use 3D laser scanning to capture existing conditions with high accuracy before generating CAD drawings or BIM models.

The best approach depends on the project's size, required level of accuracy, available budget, and long-term documentation needs. Both methods ultimately produce a reliable record of the completed asset for future maintenance, renovations, and facility management.

Traditional Method: Manual Field Updates Throughout Construction

The traditional approach to creating as-built drawings relies on continuous documentation during construction. Instead of waiting until project completion, contractors update drawings whenever a variation, approved change order, or field modification occurs. These "redline" markups become the primary source for the final as-built documentation.

This is how to make as-built drawings using the traditional method:

Update drawings after every variation. Site teams mark changes directly on construction drawings (traditionally in red ink) as soon as they occur rather than recreating them from memory during project closeout.
Capture supporting evidence. Take site photos, record measurements, and add detailed notes explaining what changed, why the change was made, and which systems or components were affected.
Track specialist installations. MEP, structural, and other trade contractors document installed equipment, routing, and field adjustments throughout the project.
Link documentation to your ERP software for contractors. Store every as-built update alongside related project records, including change orders, RFIs, site instructions, procurement documents, submittals, and document control records.
Compile the final as-built package. At project closeout, designers or drafting teams consolidate all marked-up drawings into a clean as-built set based on the contractor's redlines and supporting documentation.
Review and verify with the consultant. The supervising consultant, architect, or engineer of record reviews the contractor's as-built drawings against approved change orders, field modifications, and completed installations to confirm their accuracy and completeness. Any discrepancies are resolved before the record drawings are approved.

While this method is cost-effective, its accuracy depends on disciplined field documentation. An ERP system for contractors allows site crew to add markups, attach site photos, and record notes directly from the job site in real time using a mobile app. These updates are synchronized with the office, reducing the risk of incomplete documentation and delayed revisions.

Laser scanning method: Scan-to-CAD or Scan-to-BIM workflow

Laser scanning captures existing building conditions as millions of measurement points, creating a precise digital representation of the facility. This point cloud serves as the foundation for producing accurate as-built drawings and BIM models without relying on manual measurements.

This is how to make as-built drawings using the laser scanning method:

Define project requirements. Start by identifying the required deliverables, such as floor plans, elevations, sections, or BIM models, as well as the desired level of detail and CAD standards. A clear scope helps determine the scanning approach and data density needed for the project.
Capture the existing site. Survey teams scan the building from multiple locations to collect complete spatial data. Overlapping scans ensure every accessible area is documented while minimizing gaps and blind spots.
Create a unified point cloud, The captured scans are aligned into a single coordinate system and refined by removing noise, duplicate data, and temporary objects. This produces an accurate digital model of the building's current condition.
Prepare the survey data. The processed point cloud is exported in widely supported formats, such as E57, RCP, LAS, or OBJ, allowing it to be imported into CAD and BIM software for drafting and modeling.
Generate as-built drawings (CAD) or BIM models. Architects, engineers, or BIM specialists use the point cloud as a reference to create floor plans, elevations, sections, or intelligent 3D models that accurately reflect the existing structure.
Validate the final deliverables. The completed drawings or models are checked against the original point cloud to confirm dimensional accuracy. Retaining both the point cloud and final documentation provides a reliable digital record for future renovations, facility management, or additional design work.

Types of As-Built Drawings

As-built drawings are typically divided into several disciplines, with each documenting the final installed condition of a specific part of the project. Together, these drawing sets provide a complete record of the building as constructed.

They incorporate all approved design revisions, within-tolerance deviations from the approved drawings, and site-specific modifications made during construction to provide an accurate record of the completed asset.

Note: Every drawing included in the approved construction drawing package should have a corresponding as-built version, even if no changes occurred on that particular sheet, ensuring the final documentation forms a complete and consistent record of the project.

Architectural As-Built Drawings

Architectural as-built drawings document the completed building exactly as constructed, reflecting every approved change made during construction rather than the original design intent.

They provide the final record of building geometry, layouts, finishes, and architectural elements, serving as the reference for facility management, future renovations, and authority approvals. Most Dubai authorities require architectural as-builts to match the completed site conditions before issuing completion certificates or approving building modifications.

Architectural as-built packages typically include:

Site plan. Shows the final building footprint, plot boundaries, setbacks, north point, access roads, parking areas, and the building's relationship to neighbouring plots.
Floor plans. Documents the completed room layouts, partition locations, door and window positions, floor finishes, dimensions, and confirms compliance with approved setbacks.
Reflected ceiling plans. Records ceiling finishes, ceiling heights, lighting fixtures, HVAC diffusers, access panels, fire detectors, sprinkler heads, and other ceiling-mounted services.
Sections. At least two sections illustrating floor-to-floor heights, finished floor levels, structural components, and vertical relationships throughout the building.
Elevations. Displays all completed external façades, including materials, cladding, glazing, openings, balconies, parapets, and other architectural features.
Furniture layout. Required by Concordia (JLT) to verify occupant load and emergency egress compliance. It is optional but commonly included for Dubai Municipality commercial fit-out submissions.

Structural As-Built Drawings

Structural as-built drawings document the completed structural system exactly as constructed, including all approved modifications made during construction.

They verify that the installed structural elements comply with engineering requirements and provide the official record used for future alterations, structural assessments, and authority submissions. Dubai authorities also require certified structural calculations to accompany structural drawing submissions where applicable.

A structural as-built package generally includes:

Foundation plan. Shows the completed foundation type, dimensions, levels, depths, pile locations (where applicable), and any foundation revisions.
Structural frame plan. Documents all completed columns, beams, slabs, walls, and structural member references.
Structural details. Includes reinforcement arrangements, steel connections, structural joints, fixing details, and construction connections.
Structural engineer's calculation report. Submitted separately as a certified PDF containing dead loads, live loads, wind loads, and seismic calculations where required. The report must be signed and stamped by the registered structural engineer.
Weld Procedure Specification (WPS) and Welder Qualification Records (WQR). Required for structural steel connections in applicable Trakhees submissions to verify welding quality and compliance.

MEP As-Built Drawings

MEP as-built drawings record the final installed mechanical, electrical, and plumbing systems exactly as they were constructed on site. These drawings also confirm that building services remain within the approved design capacity and are coordinated with other building disciplines.

A complete MEP as-built package typically contains:

Electrical layout. Final locations of distribution boards, cable routes, lighting fixtures, power outlets, emergency systems, and electrical load schedules.
HVAC layout. Installed air handling units, FCUs, duct routing, diffusers, return air grilles, ventilation equipment, and airflow calculations.
Plumbing layout. Cold and hot water systems, drainage networks, sanitary fixtures, pipe routing, pipe sizes, valves, and cleanouts.
Fire protection layout. Final locations of sprinkler heads, fire hose reels, extinguishers, detectors, alarm devices, and coordinated fire protection systems.
MEP load schedule. Consolidated summary confirming that electrical demand, HVAC capacity, and plumbing loads remain within the building's approved service capacity.

Ensure timely and profitable project completion with FirstBit ERP

Request a demo

How FirstBit ERP Simplifies As-Built Drawing Documentation for UAE Contractors

Keeping as-built drawings accurate and up to date is one of the biggest documentation challenges on construction projects. When drawings and supporting documents are stored across emails, paper files, and shared folders, teams risk using outdated information and delaying project closeout.

FirstBit ERP helps contractors centralize project documentation and maintain a complete audit trail throughout the project lifecycle. By connecting project management, RFIs, procurement, approvals, progress reporting, and document management in one platform, site and office teams always have access to the latest project information and supporting records.

FirstBit ERP enables you to:

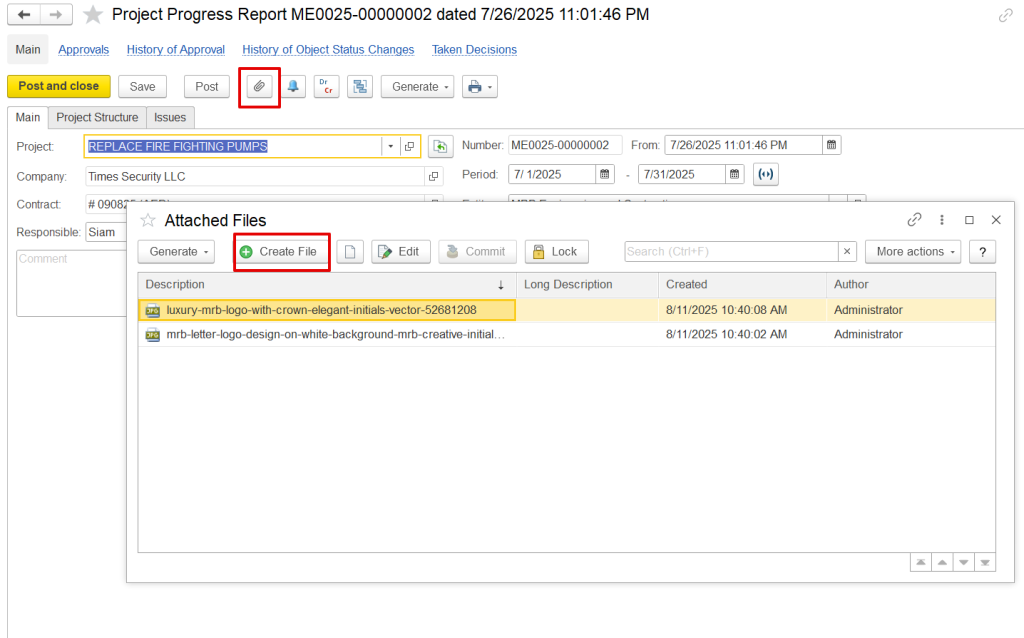

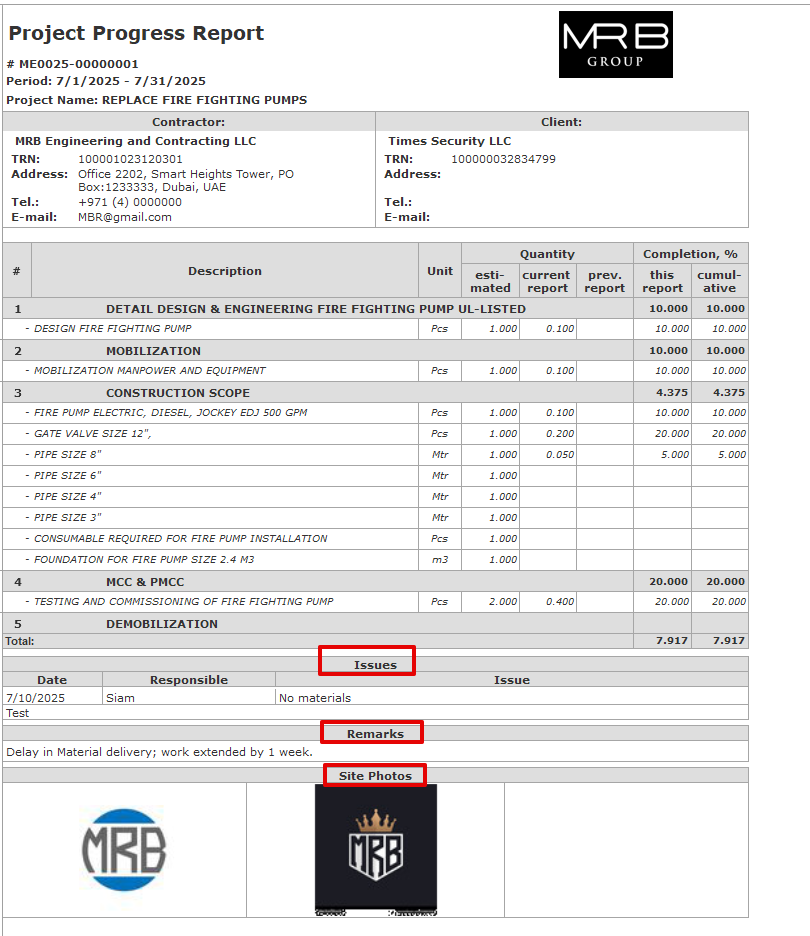

Store project drawings and supporting documents in a centralized document repository with secure access and version control.
Link RFIs, approvals, and variation-related documents to project records, creating a clear history of design decisions and site changes.
Attach site photos, field reports, and progress updates directly from the mobile app, providing visual evidence to support as-built documentation.
Manage digital approval workflows so drawing revisions and supporting documents are reviewed and approved faster.
Track project progress by BOQ line and milestone, making it easier to verify completed work before preparing handover documentation.
Maintain a complete document history and audit trail, ensuring that project teams can quickly retrieve the latest drawings, approvals, and related records during inspections or final handover.

Conclusion

Successful project closeout depends on accurate documentation that reflects the completed asset and supports its entire lifecycle. Understanding this as-built drawings meaning helps contractors, consultants, and owners preserve reliable project records that improve future maintenance, renovations, compliance, and long-term asset management.

Choosing how to make as-built drawings depends on project complexity, required accuracy, available technology, and documentation goals. Whether using traditional field markups or advanced laser scanning, maintaining verified records throughout construction produces dependable deliverables that reduce errors and simplify handover.

In the end, meeting as-built drawings requirements is essential for smooth approvals, efficient inspections, and successful project completion. Well-prepared documentation demonstrates professionalism, minimizes delays, and provides stakeholders with a trustworthy reference that continues delivering value long after construction has been completed.

Keep your project on track

Manage every phase efficiently with ERP tools

Request a demo

FAQ

What are as-built drawings and why are they important?

What’s the difference between original drawings and as-built drawings?

What are the as-built drawings requirements in UAE?

How to make accurate as-built drawings on a live construction site?

Who is responsible for preparing as-built drawings — the contractor or consultant?

Arina Sherbakova

Author & editor

Construction author & editor with 4 years of cross-industry experience, now dedicated to creating high-quality educational content. Specializes in translating technical insights and data into clear, user-focused articles with actionable takeaways.

AI in Construction Scheduling: How UAE Contractors Improve Project Timelines with Data

What Is a Snag List in Construction: A Practical Guide for UAE Contractors

The Hidden Profit Killer: How to Identify, Track, and Eliminate Idle Time in Construction

See FirstBit ERP solutions in action

Discover how our system solves the unique challenges of contractors in a personalized demo.

After the demo you will get a quotation for your company.
